MSV series Mechanical Valves

View more specifications MSV series Mechanical Valves for you
Model No：  MSV
Place of Origin: Zhejiang
Brand Name:  Top Source

  or
MSV series Mechanical Valves
Previous 1 2 3 4 5
 Description
Payment & Shipping Terms
Payment Term: L/C/T/T
MOQ: 100 Piece/Pieces
Means of Transport: By sea/ by air
Supply Capacity
Production Capacity: 2000pcs/day
Packing: Export standard package
Delivery Date: 10-20 days

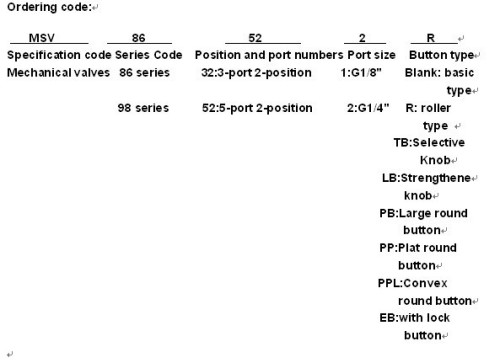

MSV Mechanical valves

Specification:
Model
MSV86321
MSV86522
MSV98322
Working fluid
Air(filtered by 40μm filtering net)
Positions and port numbers
3-port 2-position
5-port 2-position
3-port 2-position
Working pressure
0-0.8MPa
0-0.8MPa
0-0.8MPa
Temperature range
0-60ºC
Effective sectional area
10mm2(CV=0.67)
16mm2(CV=0.89)
16mm2(CV=0.89)
Port size
G1/8"
G1/4"
G1/4"
